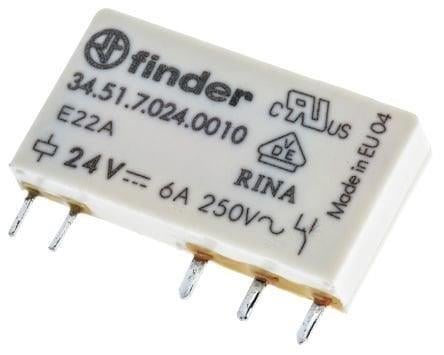

24V DC Ultra ince PCB Röle 34.51.7.024.0010 (34.51.7.024.0010)

34 Serisi Ultra İnce Pcb Röle

       RELAY, SPCO, 6A, 24VDC

• Relay Type: General Purpose
• Coil Voltage VDC Nom: 24V
• Contact Current Max: 10A
• Contact Voltage AC Nom: 250V
• Coil Resistance: 3.35kohm
• Contact Configuration: SPCO
• Coil Type: DC, Sensitive
• Coil Current: 7.1mA
• Nom Operating Power: 170mW
• Relay Mounting: PCB
• External Height: 15mm
• External Width: 28mm
• External Depth: 5mm
• SVHC: No SVHC (20-Jun-2011)
• Approval Bodies: CSA, GOST, UL, VDE
• Contact Configuration: SPCO
• Contact Current AC Max: 6A
• Contact Current Max: 10A
• Contact Current Rating: 6A
• Contact Material: AgNi
• Contact Voltage AC Max: 400V
• DC Coil Power: 0.17W
• External Length / Height: 15mm
• Mounting Type: PCB
• No. of Mechanical Operations: 10000000
• No. of Poles: 1
• Operating Temperature Max: 85°C
• Operating Temperature Min: -40°C
• Power Rating: 1.5kVA
• Series: 34
• Switch Current Max: 10A
• Switching Current Max: 10A
• Switching Voltage AC / DC Min: 250VAC

Havale ile Ödeme ₺366,60  + KDV
