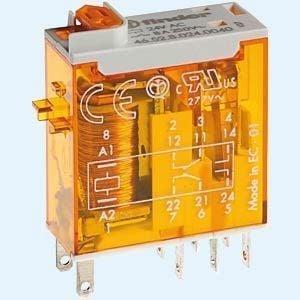

Finder 46.52.8.230.0040 Serisi 230V AC Minyatür Endüstriyel Röle (46.52.8.230.0040)

46 Serisi Finder Röle Bilgileri



Relay type	industrial
Contacts configuration	DPDT
Rated coil voltage	230V AC
Coil voltage min.	184V AC
Coil voltage max.	253V AC
Switched current	8A 2CO
Switched voltage	max 250V AC
Coil resistance	28kΩ
Body dimensions	29 x 12.4 x 32.8mm
Contacts pitch	5mm
Contact material	AgNi
Mechanical durability	1000000cycles
Switched current, max.	15A
Features	test button with blocking function
Operating temperature	-40...70°C

Mounting:



• PCB
• socket

Additional information

Gross weight:0.02 kg



Collective package [pcs]:4

Havale ile Ödeme ₺709,70  + KDV
